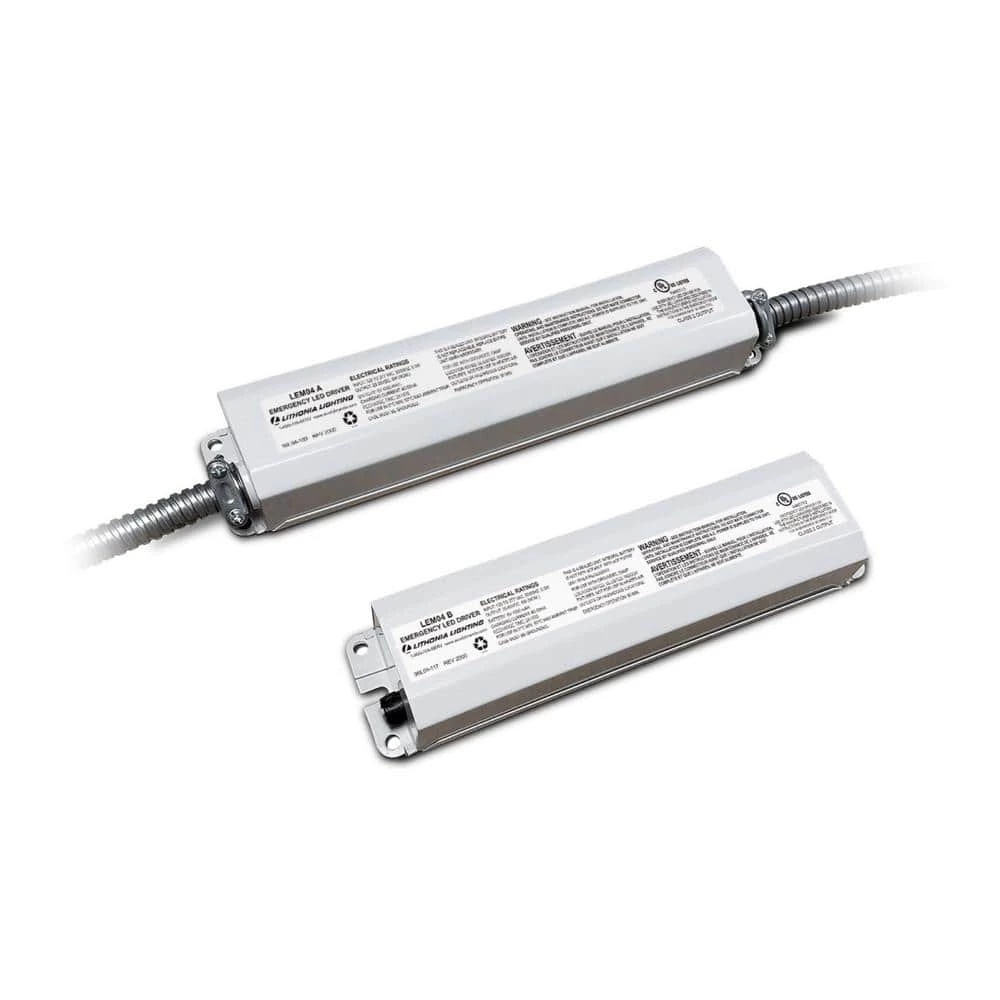

Contractor Select Emergency LED Driver by Lithonia Lighting

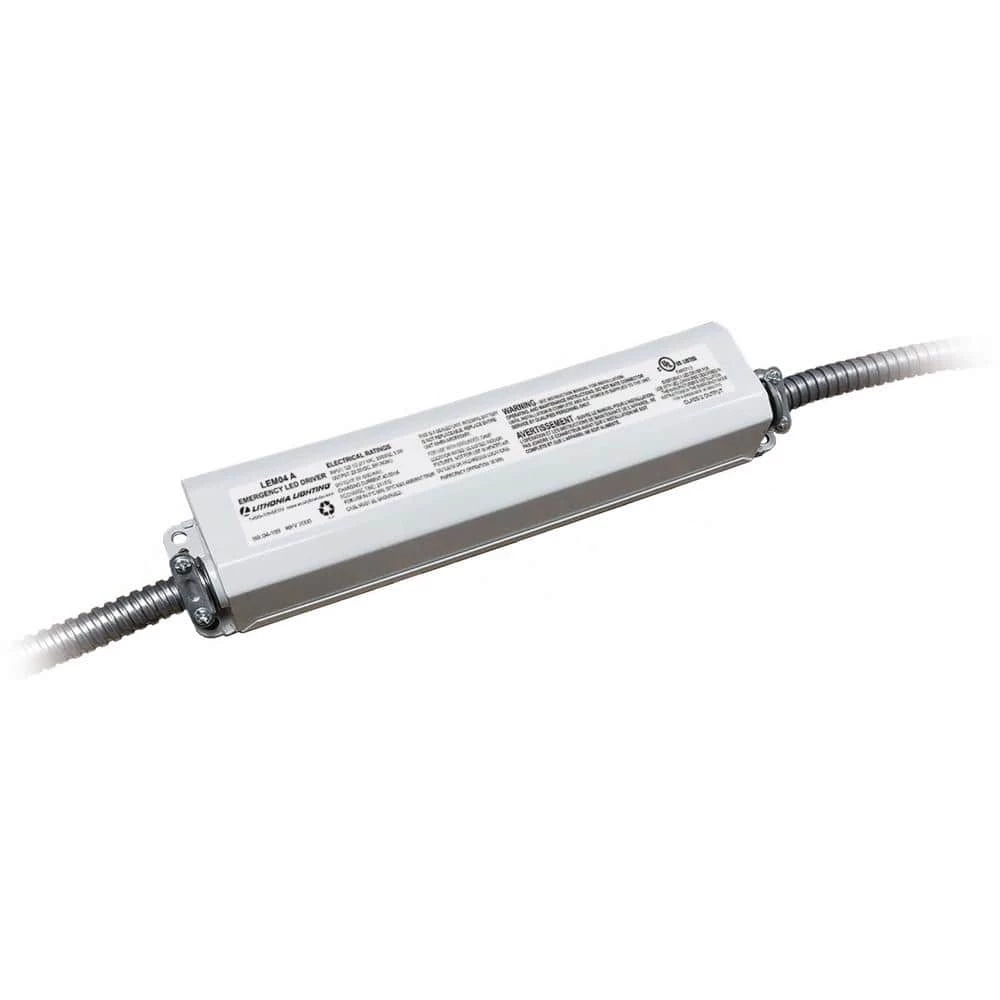

Contractor Select Emergency LED Driver by Lithonia Lighting - Image 2

Contractor Select Emergency LED Driver by Lithonia Lighting

Name: Contractor Select Emergency LED Driver by Lithonia Lighting
SKU: Lithonia Lighting 316726860
Availability: InStock

Original price was: $74.97.Current price is: $49.48.

Provides 90-minutes of illumination during a loss of normal power
Universal voltage input (2-wire): 120-277VAC, 50/60Hz
UL and damp location listed and includes a 3-year warranty

SKU: Lithonia Lighting 316726860 Categories: Ceiling Light Parts, Ceiling Lighting Accessories Tags: 1440, 2800, 50 V, 90-Day, Lithonia Lighting

Service with a smile, always online.
Where quality meets convenience.
The best quality products, always.
Secure Shopping Starts with Safe Payments

The LEM04 emergency LED driver enables the lighting fixture to deliver a minimum of 90-minutes illumination during a loss of normal AC power. It is UL Listed for factory or field installation with indoor, damp location luminaires utilizing 20-Volt DC to 50-Volt DC output voltage. When normal AC power fails, the LEM04 immediately drives the LED load at reduced light output for a minimum of 90-minutes. When AC power is present, the emergency LED driver ensures the sealed, maintenance-free, high-temperature nickel-cadmium batteries are fully charged within 24-hours after a discharge and remains fully charged until the next loss of AC power. The included test switch/pilot light provides visual and manual means of monitoring the system operation.

Multi-volt capability- 120-Volt thru 277-Volt, 50/60hz output voltage- 20 VDC to 50 VDC initial output power 4-Watt maximum AC input – 65mA
UL Listed meets UL 924, NFPA 101 (current life safety code), NEC and OSHA illumination standards. UL 1310 certified, output class 2 compliant UL Listed for installation in damp location, recessed type IC fixtures, ambient temp rating 0°C to 50°C (32°F to 122°F)
Features dual metal conduit for mounting outside the wirewa, one 1/2 in. hole in fixture channel permits mounting test switch/pilot light behind fixture lens. enclosure length: 11.0 in. L, width: 2.38 in. W, height: 1.55 in. H, conduit length: 24 in. L, shipping weight: 2.5 lbs. (1.13 kg)
Sealed nickel-cadmium battery

Battery Model/Part No.	LEM04 A M6
Brand/Model Compatibility	Intended for use with 20-50VDC Class 2 luminaires
Emergency run time (min.)	90
Product Weight (lb.)	2.5 lb
Recharge time (min.)	1440
Returnable	90-Day
Voltage Output (volts)	50 V
mAh	2800
Certifications and Listings	cULus Listed
Manufacturer Warranty	3-Year limited warranty
Product Depth (in.)	11 in
Product Height (in.)	1.55 in
Product Width (in.)	2.38 in
