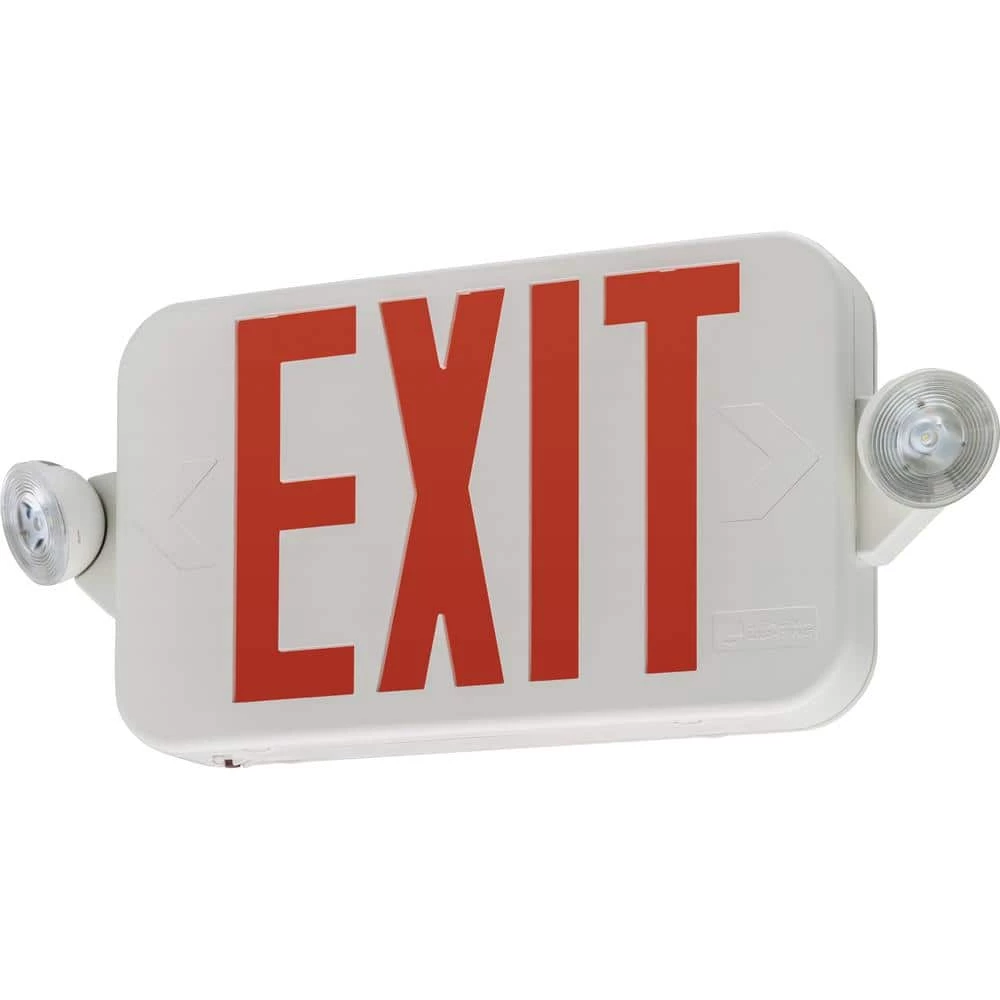

Contractor Select ECRG RD 20-Watt Equivalent 120-Volt/277-Volt Integrated LED White Exit/Emergency Combo Unit by Lithonia Lighting

Name: Contractor Select ECRG RD 20-Watt Equivalent 120-Volt/277-Volt Integrated LED White Exit/Emergency Combo Unit by Lithonia Lighting
SKU: Lithonia Lighting 315740946
Availability: InStock

Original price was: $50.79.Current price is: $35.05.

Internal toggle switch for red or green exit
0.75-watt per head, 6200 K light produces 85 lumens
UL listed and indoor damp location rated with a 2 year warranty

SKU: Lithonia Lighting 315740946 Categories: Commercial Lighting, Emergency & Exit Lights Tags: 1.9 lb, Lithonia Lighting, Thermoplastic, White, Yes

Service with a smile, always online.
Where quality meets convenience.
The best quality products, always.
Secure Shopping Starts with Safe Payments

The Lithonia Lighting Basics ECRG, is a combination of exit and emergency lighting. The ECRG is ideal for safely illuminating the path of egress above-the-door in small spaces at lower mounting heights while providing 90-minutes of emergency power. Contains ability to switch between red and green letters.

ECRG LED exit sign has an internal switch for red or green color selection
Offered in the new bright white thermoplastic housing, the EXRG has a classic design with updated features, this fully assembled single-face exit comes with an extra faceplate and red and green panel inserts for ultimate field configurability
Multi-voltage 120-Volt – 277-Volt, 50 Hz/60 Hz
UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current life safety code), NFPA 70 (NEC), FCC title 47, part 15, subpart B and OSHA, indoor damp location 50 degree F to 104 degree F (10 degree C to 40 degree C) listed
Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
Typical life of the LED lamp is 10-years
Provides a minimum of 90-minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
Battery: 3.6-Volt maintenance-free, rechargeable, nickel metal hydride
2-year limited warranty

Actual Color Temperature (K)	6200
Package Quantity	1
Product Height (in.)	7.24 in
Product Depth (in.)	16.46 in
Manufacturer Warranty	2-year limited warranty
Certifications and Listings	UL Listed
Watt Equivalence	20
Returnable	90-Day
Replaceable LED Module	No
Product Weight (lb.)	1.9 lb
Powered	Yes
Material	Thermoplastic
Color Rendering Index (CRI)	80
Lumens	85
Letter Color	Green,Red
Hardware Included	Yes
Fixture Color/Finish	White
Fixture Color Family	White
Emergency run time (min.)	90
Connection Type	Hardwired
Compatible Bulb Type	Integrated LED
Color Temperature	Daylight
Product Width (in.)	2.05 in
